Protect 800 Outdoor Wireless Receiver With 12v Security Flood Light

• Protect-800 Outdoor Wireless Receiver supplied with a 12v Security Flood Light which can be added onto any of the Protect-800 Alarms & Alerts.
•  The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (800 metre) Remote Control.

• PIR’s
• Vehicle Probes
• MT Transmitter
• Gate Contact & Transmitters
• PIR in a Bird Box
• Transmitter Board
• The operating range between this Receiver and the Protect-800 Sensors is 800 metres (line of sight) which equates to around 400 – 600 metres in most applications.

Duration:

The duration of the 12v DC Outputs is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).

Remote Control:

The specially designed remote control supplied with this Outdoor Receiver has the following features:

• Arm & Disarm either channel on the Outdoor Receiver.
• Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
• The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
• Additional Remote Controls can be added (there is no limit).
• The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 – 600 metres in most applications. This allows you to Disarm the Receiver before passing through a Protect 800 Detector, or Arming the Receiver after leaving the premises.
• Powered by two standard AAA Batteries (supplied).

Flood Light:

• The Flood Light is a 20 watt LED model, up to two could be used on each of the 12v Output terminals on this Receiver.

• You can also add the standard Indoor Receivers  to this system allowing you to have notification inside the house (regardless of if the Outdoor Receiver is Armed or Disarmed).
•  This is a unique Outdoor Receiver which can be used in so many types of applications, not found in any other Driveway Alarm System !!

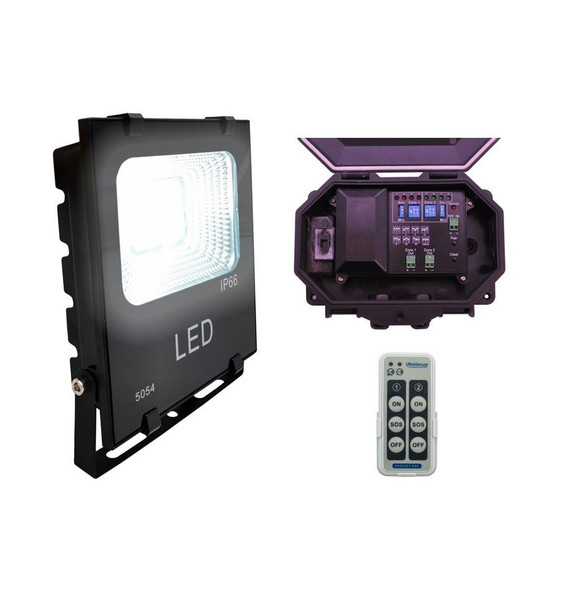

kit Includes:

• 1 x Outdoor Receiver (P800-WSR/1).
• 1 x Remote Control (P800-WSK/1).
• 1 x 12v DC Plug in Power Supply.
• 2 x AAA Batteries.
• 1 x 12v Flood Light.

Specifications:

Receiver:

• Weatherproof: Yes.
• Power Supply: 12v 5 amp DC.
• Weatherproof Cable Entry Glands: Yes.
• Channels: 2.
• Sensors per Channel: 4.
• Operating Range: 800 metres (line of sight).
• Arming & Disarming Method: Remote Control.
• 12v DC Outputs: 2.
• Output Duration:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).
• Duration Selection: Internal Dip-switches.
• Frequency: 869.400 – 869.650 MHz.
• Size: 170 x 125 x 60 mm.

Remote Control:

• Operation:
• Channel 1 Arm, Disarm & SOS.
• Channel 2 Arm, Disarm & SOS.
• Power Supply: 2 x AA Batteries (supplied).
• Size: 85 x 40 x 25 mm.
• Transmission Range: 800 metres (line of sight).
• Multiple Remote Control Operation: Yes (no limit).
• Feedback Indicator: Yes (it confirms a successful operation).
• Frequency: 869.400 – 869.650 MHz.
• Wall Bracket: Yes (supplied).

Flood Light:

• Voltage: 12v DC.
• Watts: 20.
• Colour: Black.
• Mounting Bracket: Adjustable.
• Size: 155 (w) x 180 (h) x 65 (d) mm.
